Enclosed Track Conveyors – The PAC-LINE™ Overhead Conveyor
TD;LR
The PAC‑LINE™ is a medium-capacity, enclosed track monorail conveyor engineered to deliver maximum flexibility and space efficiency, carrying up to approximately 50 lb per pendant. Its enclosed round track protects the chain from dust and debris and reduces maintenance needs while freeing up valuable floor space and ensuring smooth, reliable operation.
The PAC-LINE™ Monorail Enclosed Track Conveyor is a highly compact, medium capacity, chain conveyor with unique features to allow for maximum conveying flexibility in small spaces:
- Low profile drives
- Low profile track sections
- Small radius rolled and hardened curves
- Small radius sprocket turns
- Small radius vertical curves, up to 90° if necessary
PAC-LINE™ Enclosed Track Conveyors are designed to handle 50 lbs. (23 kg) from single pendants, which are standard on 6” centers. Coupling two pendants with a load bar allows up to 100 lb. loads.
Other features of PAC-LINE™ enclosed track conveyors:
- Modular track components ensure quick, trouble-free, onsite installations and modifications with reduced installation labor costs and minimized downtime.
- Bolted track design for easy installation without welding.
- All parts are zinc plated and heat treated to ensure full protection from wear and resistance to corrosive environments.
- Low profile drive and track and tight radius curves on both horizontal and vertical planes.
- Enclosed track prevents contamination from reaching chain and bearing surfaces for reduces cleaning and maintenance costs.
- Chain attachment points on 6” centers maximizes versatility of hanging products.

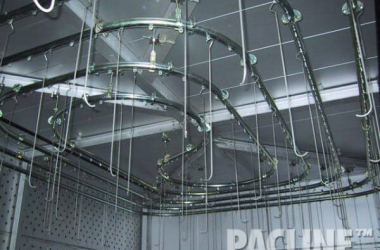

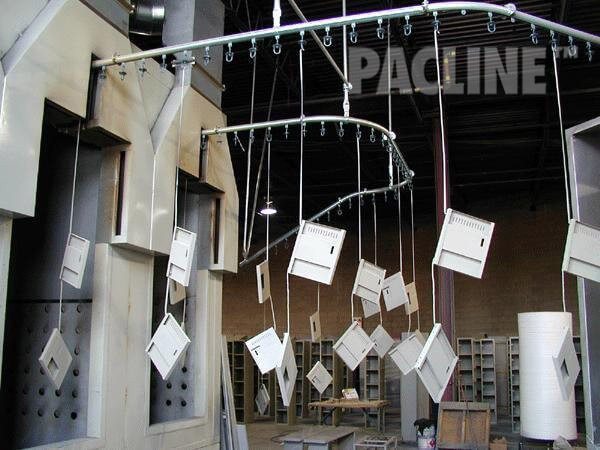

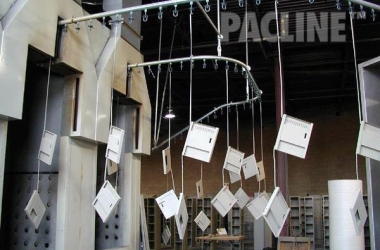

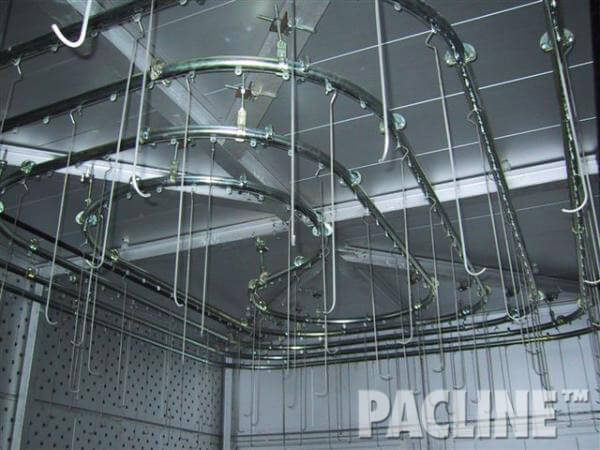

The PAC-LINE™ Enclosed Track Overhead Conveyor is a proven performer with over 2 million feet of conveyor in use today. The PAC-LINE™ is best suited for “slot down” applications where the load is beneath the conveyor track.

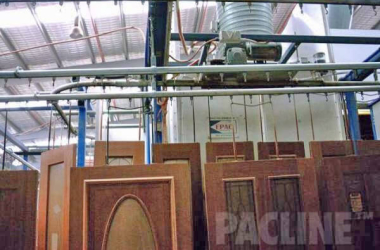

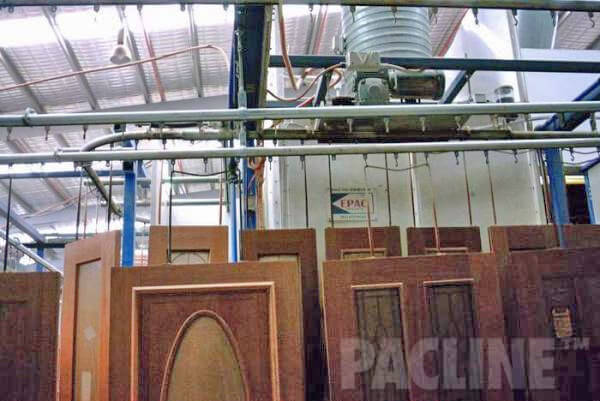

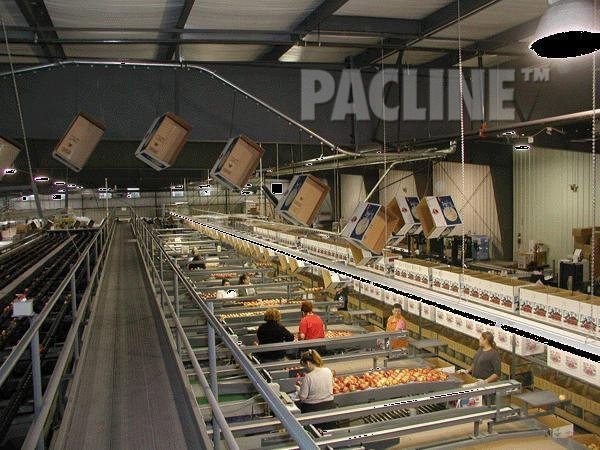

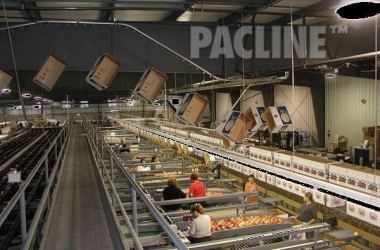

Typical applications for monorail enclosed track conveyors include:
PAC-LINE™ Monorail Enclosed Track Conveyor
