Home » Photos » Photos by Solution » Finishing Line Photos

Paint and Finishing Line Conveyor Photos

All
Cleaning and Pretreatment
Dip Lines
E-Coating and Plating
Powder Coating
Wet Spray Painting
Wood Finishing

Overhead conveyor for a washer system

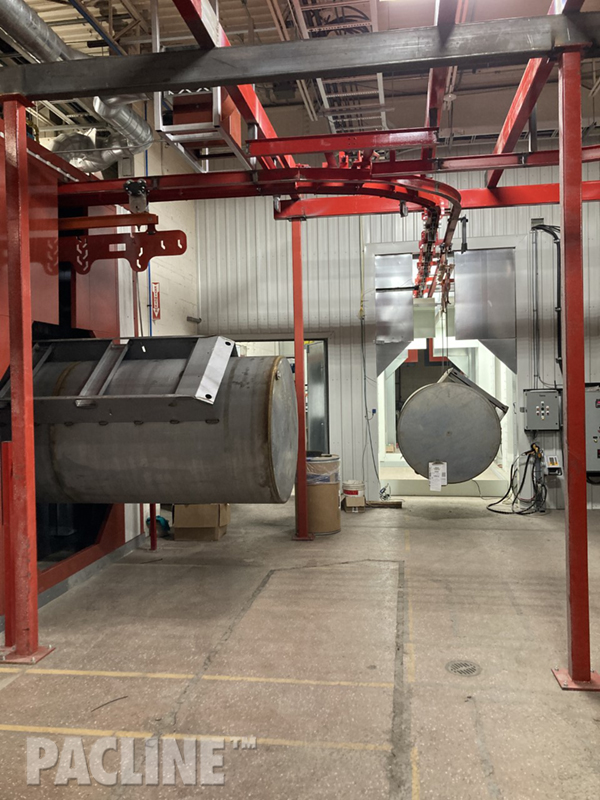

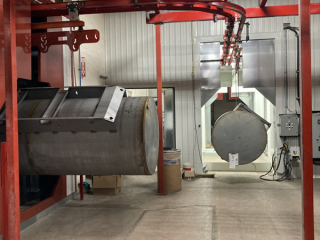

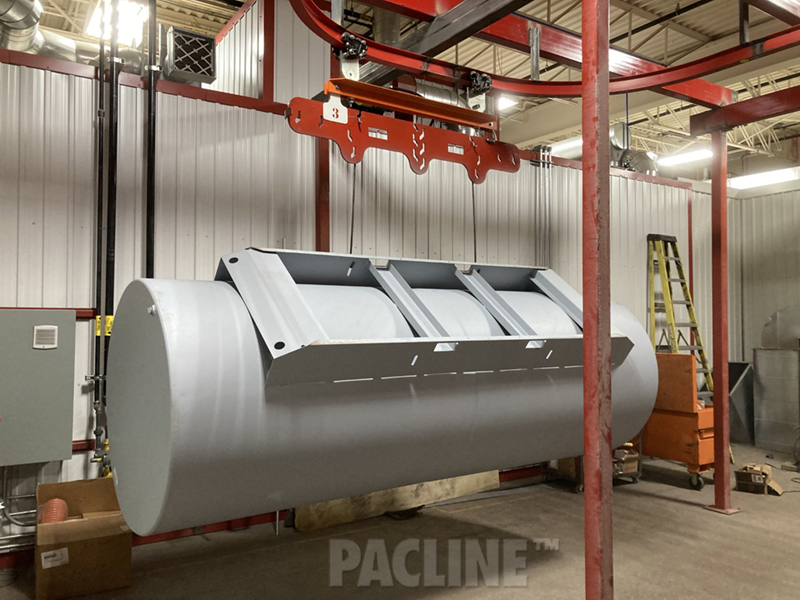

Overhead conveyor system for handling heavy tanks

Heavy tank finishing line utlilizing overhead conveyor system

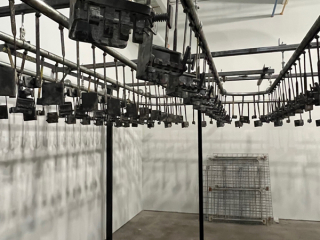

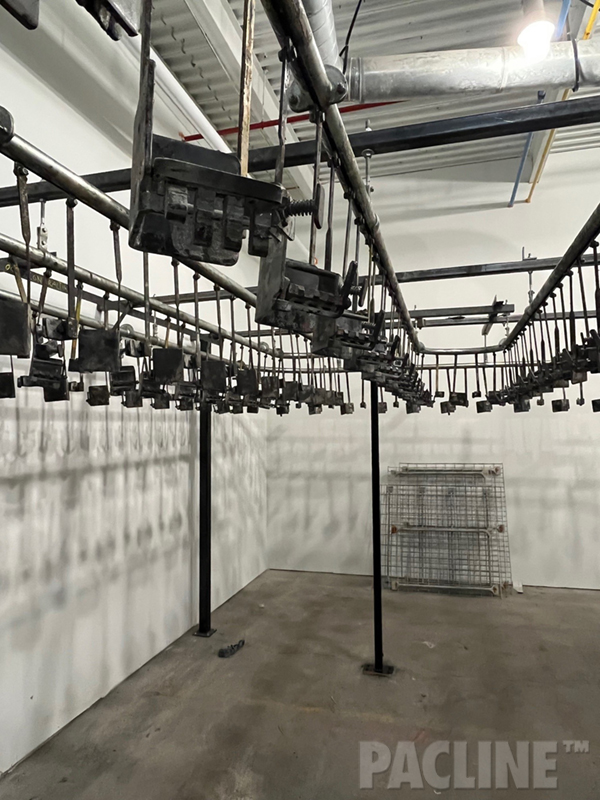

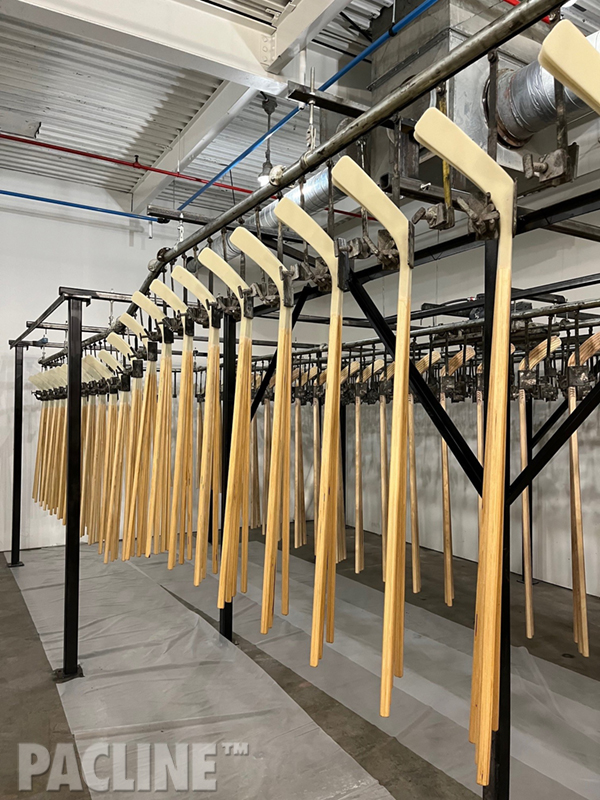

Pacline overhead conveyor for painting hockey sticks

Overhead conveyor paint line for hockey sticks

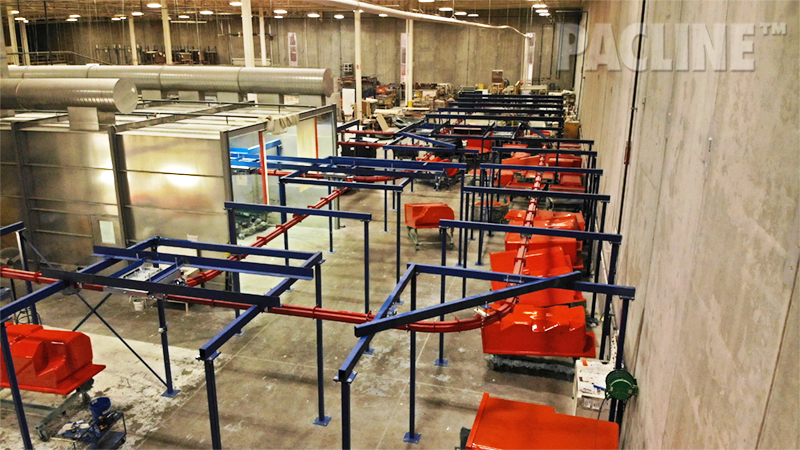

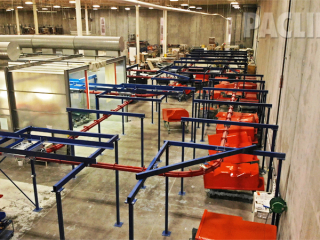

Fiberglass bath fixutres manufacturing line

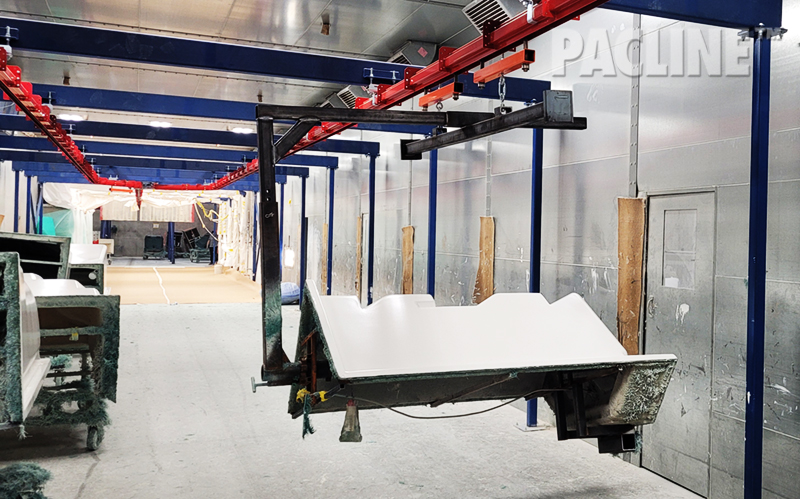

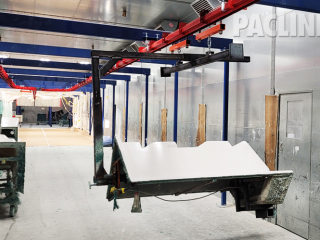

Fiberglass bath molds for a manufacturing line

Fiberglass bath fixtures for a manufacturing line

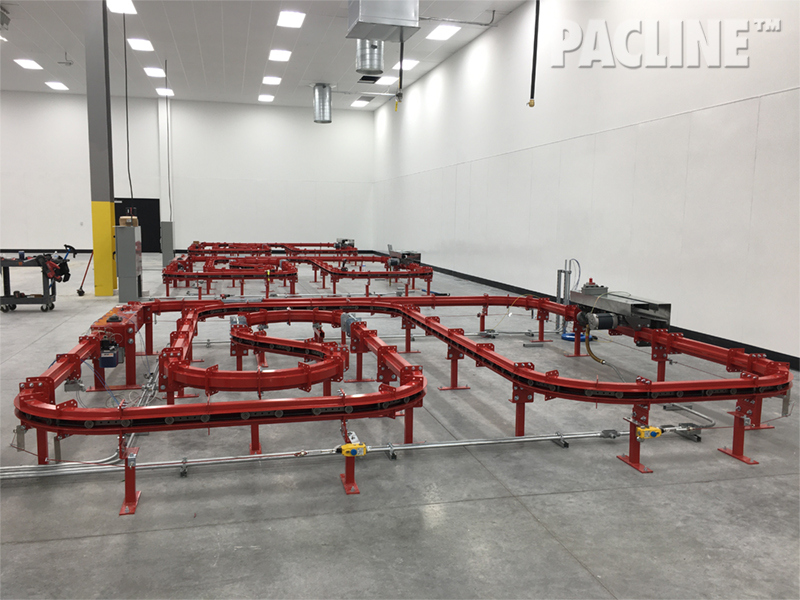

Paint and Finishing PACMAC Conveyor Serpent Style

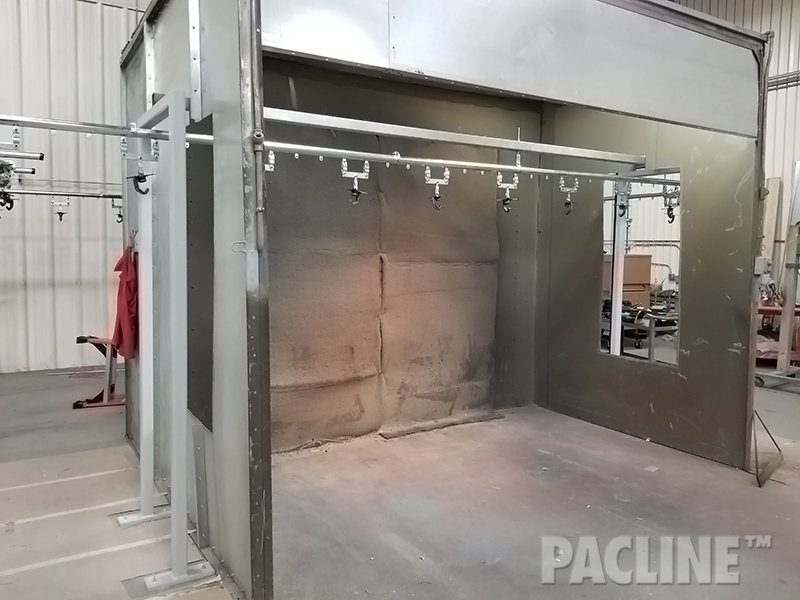

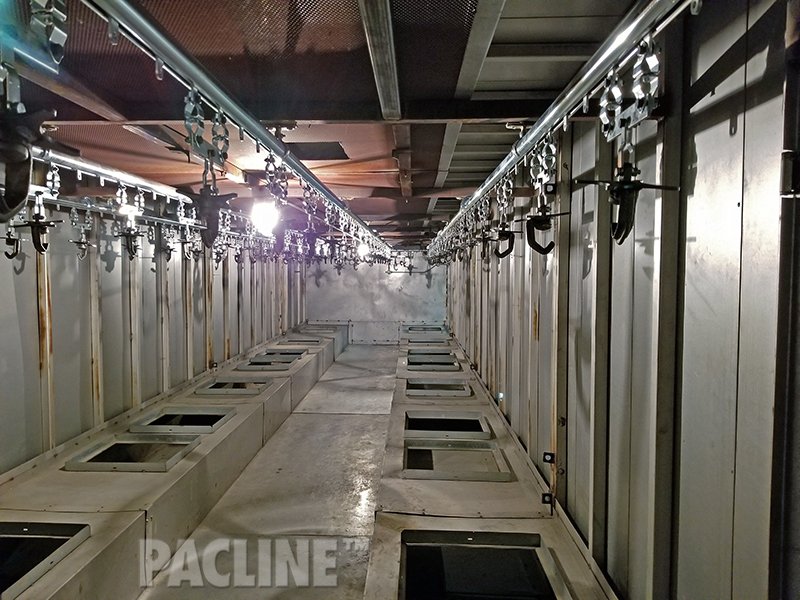

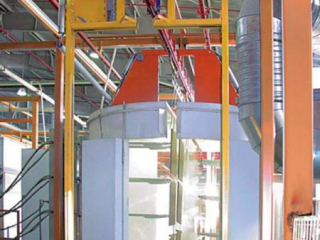

Overhead paint conveyor for a powder coating line.

Overhead paint conveyor for a powder coating line.

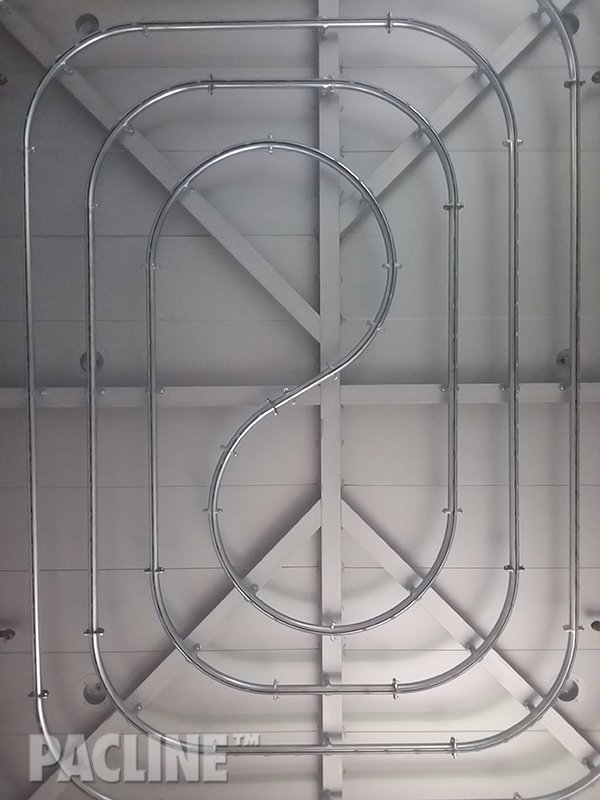

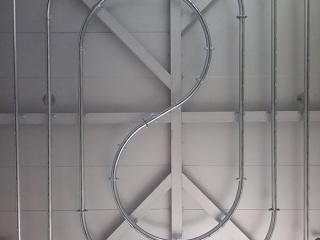

PAC-LINE™ enclosed track conveyor for painting door seals.

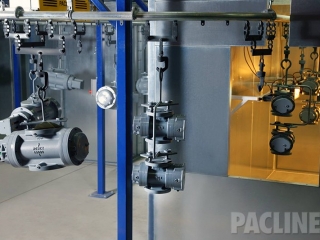

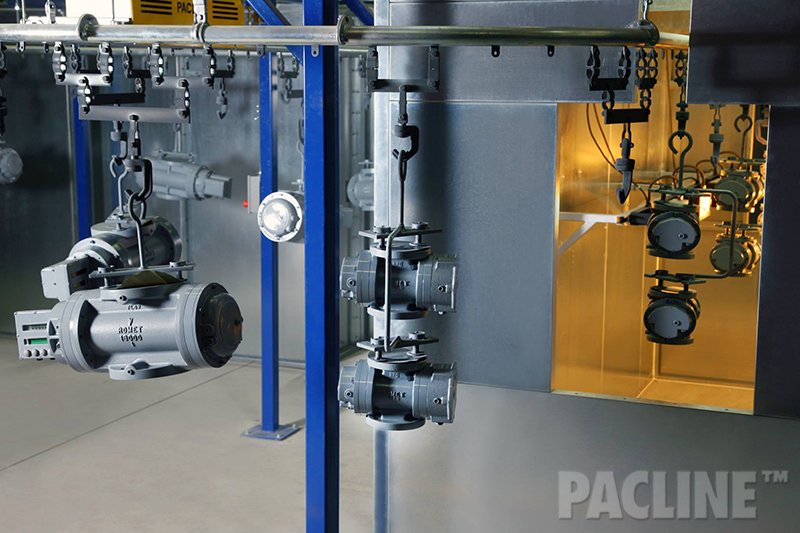

PAC-LINE™ overhead conveyor for a gas meter paint and finishing system.

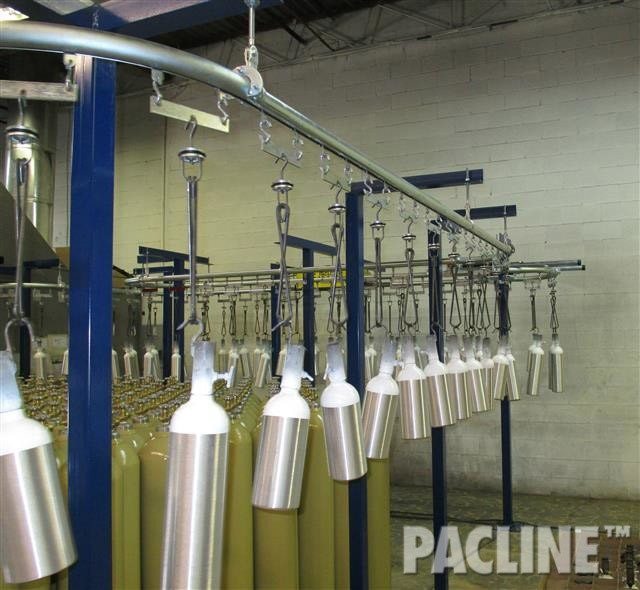

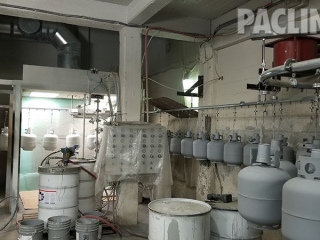

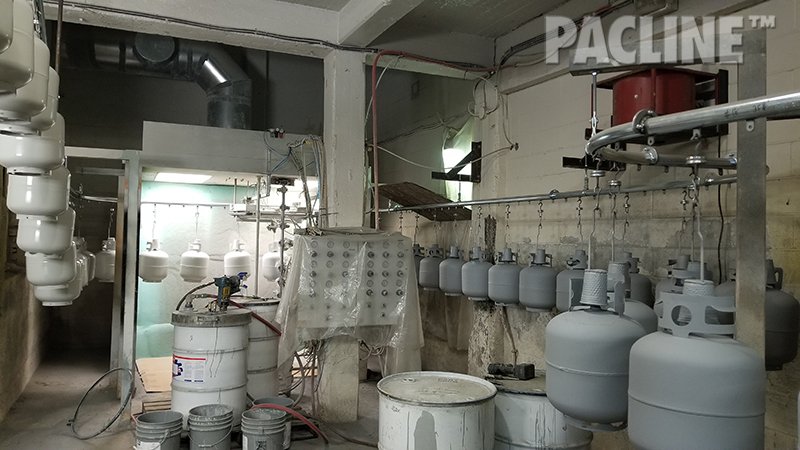

PAC-LINE™ enclosed track conveyor for refurbishing propane tanks.

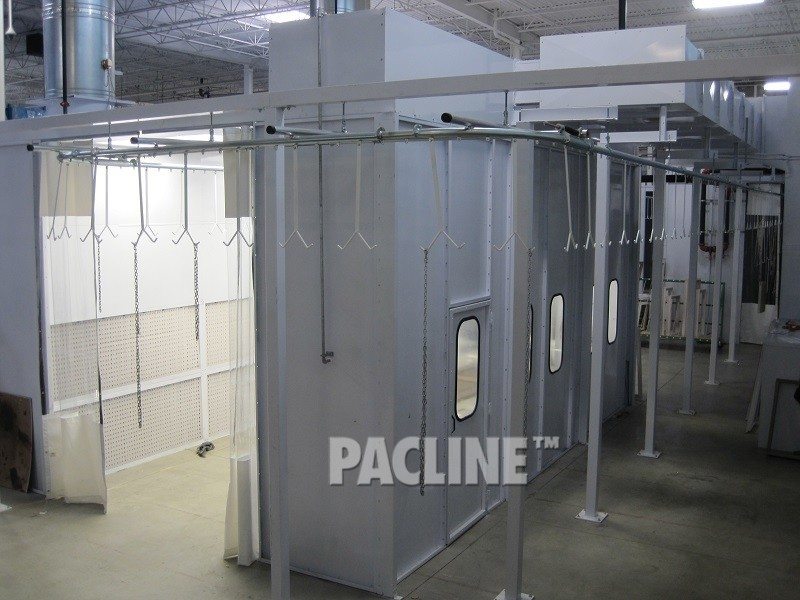

The PAC-LINE overhead enclosed track conveyor goes through a paint booth system.

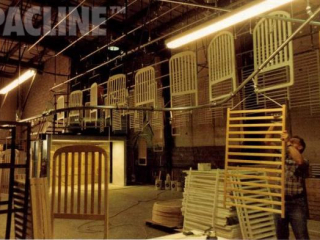

Monorail enclosed track conveyor moves wooden bed frames through sanding and paint finishing.

Overhead conveyor transports kitchen cabinet doors from manufacturing through the finishing process.

The PAC-LINE™ paint line conveyor installed with a rack handling system for handling wood chair seats.

An overhead conveyor can handle steep inclines to move these frames up off the floor between finishing processes.

Large custom counter tops are moved through paint line process on Pacline overhead conveyor.

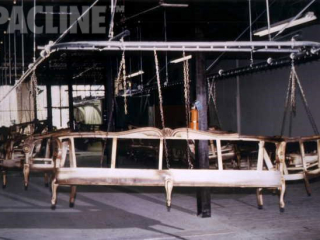

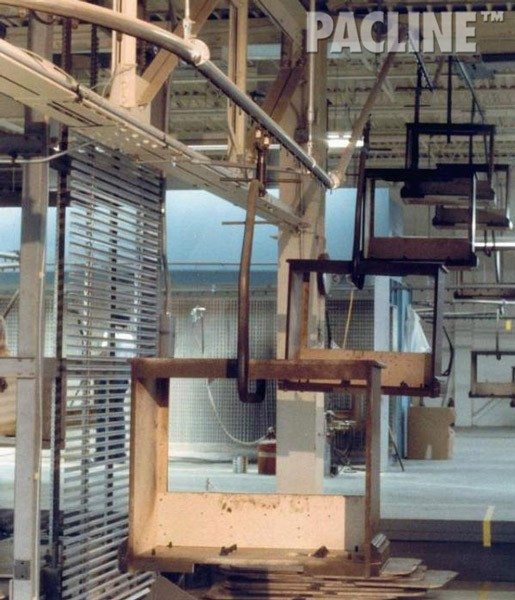

Enclosed track overhead conveyor transfers wooden sofa frames through paint finishing lines.

Cart tops are automatically rotated to allow close packing of carts in this paint line conveyor system.

Enclosed track monorail conveyor from PACLINE used to carry large wood table tops through paint process.

PAC-TRAK towline floor conveyor from PACLINE handles awkward furniture through paint finishing process.

Towline conveyor cart has rotating top to allow access to all sides of furniture during paint finishing process.

Wood furniture is manually loaded onto slow moving carts on this towline wood finishing conveyor.

Wooden desks are lightly sanded on towline conveyor system with carts in transit.

PACLINE's rotating carrier allows for easy access to all areas of wood part during finishing.

PACLINE overhead conveyor transfers large wood furniture cabinets through finishing line leaving floor space clear.

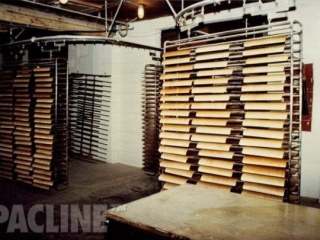

Overhead conveyor system eliminates the need for rack drying on floor. The conveyor also conserves floor space.

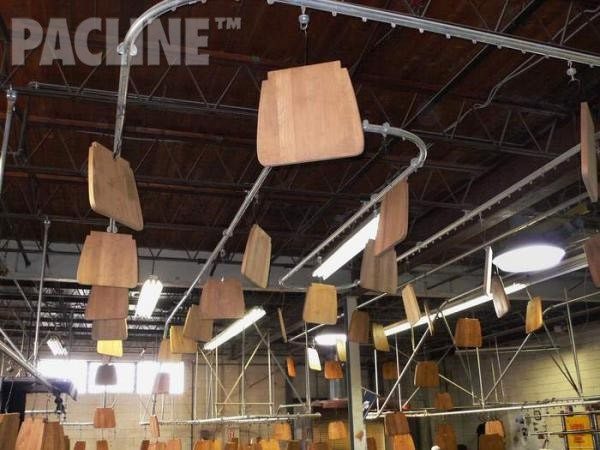

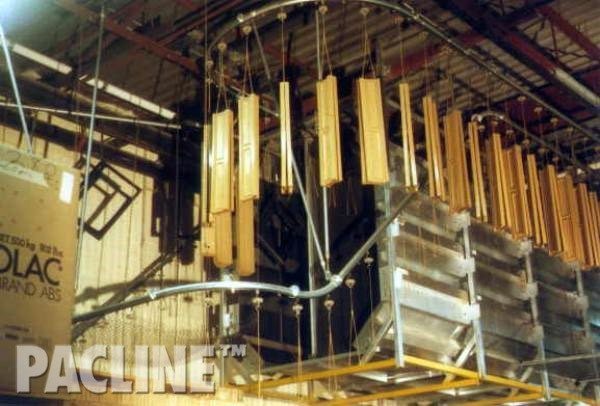

Overhead conveyor system designed to move wooden chair parts through complete finishing process.

Furniture that is difficult to convey on an overhead conveyor is ideally handled by the PAC-TRAK towline system.

Overhead conveyor system designed to conserve floor space by utilizing ceiling space for storage between processes.

On a single conveyor line, wood products move through the various finishing processes to overhead space for drying.

Large wooden doors hang from Pacline enclosed track conveyor to transport from finishing through assembly process

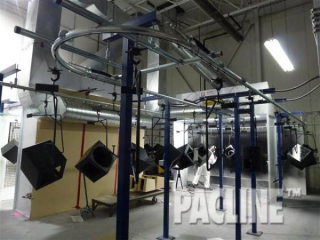

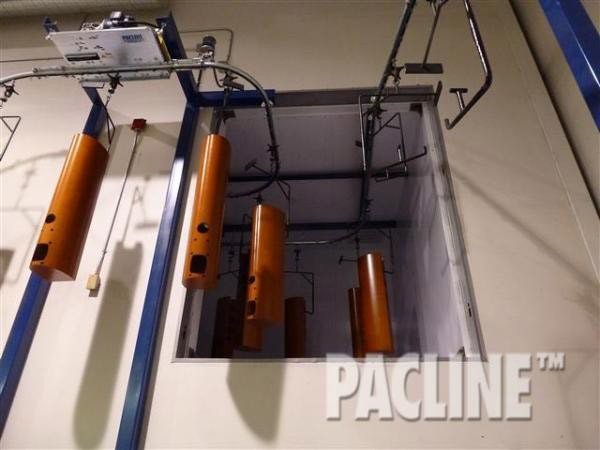

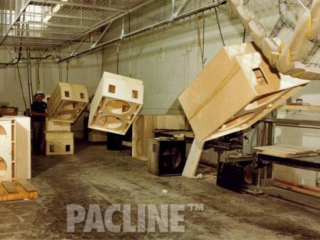

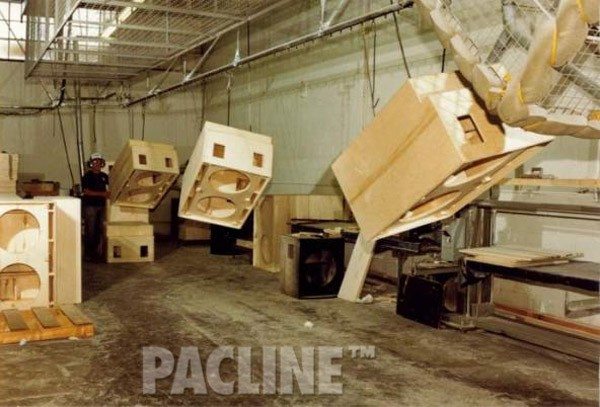

High Quality Wood Speakers enter a curing oven via The PAC-LINE™ enclosed track overhead conveyor.

The PAC-LINE™ enclosed track overhead conveyor in a Wet Spray application, moves product into a paint oven.

High Quality Wood Speaker Manufacturer uses the PAC-LINE™ enclosed track conveyor for their Wet Spray application.

Conveying of kitchen cabinet panels from manufacturing through the finishing process and back to assembly.

PACLINE overhead conveyor system for paint finishing of small metal parts using track type carriers.

The PAC-LINE™ conveyor system for paint finishing of small metal parts using multiple-point or track type carriers.

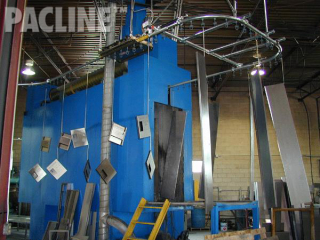

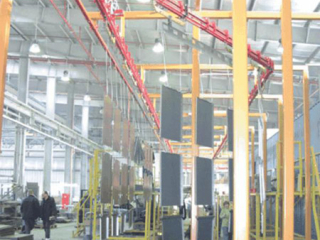

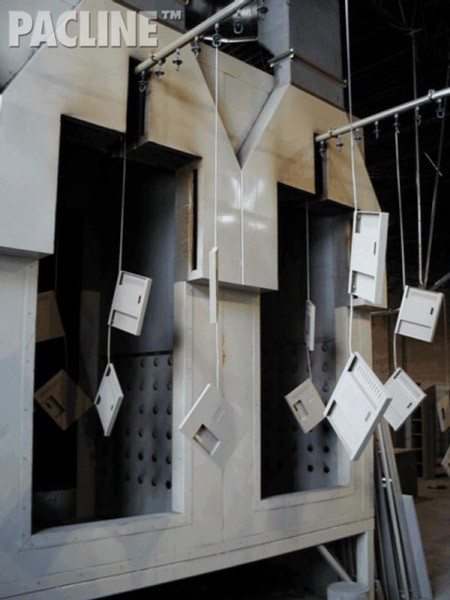

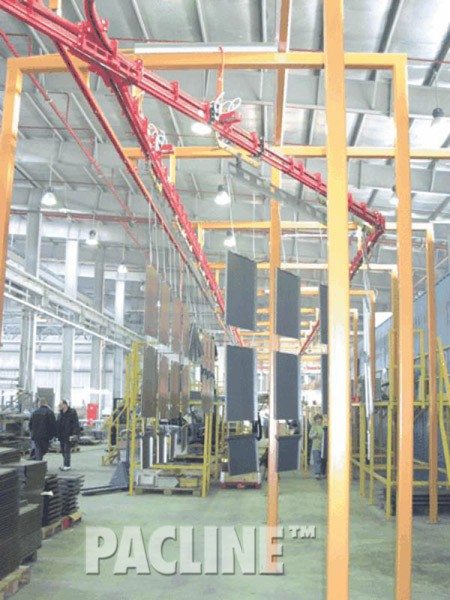

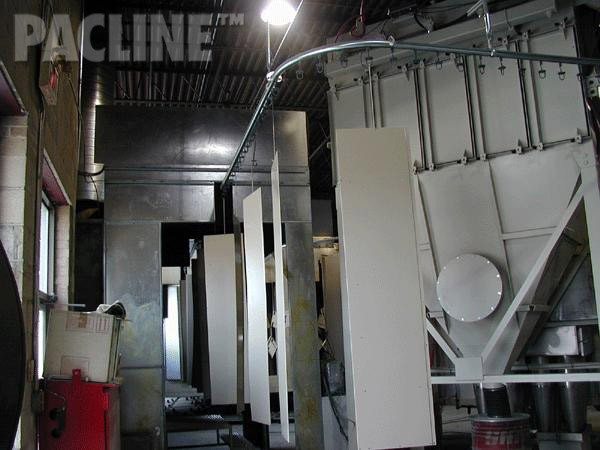

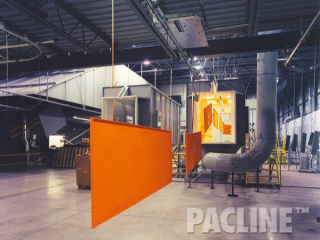

Powder coat finishing of panels for metal cabinets using the PAC-LINE™ overhead conveyor system.

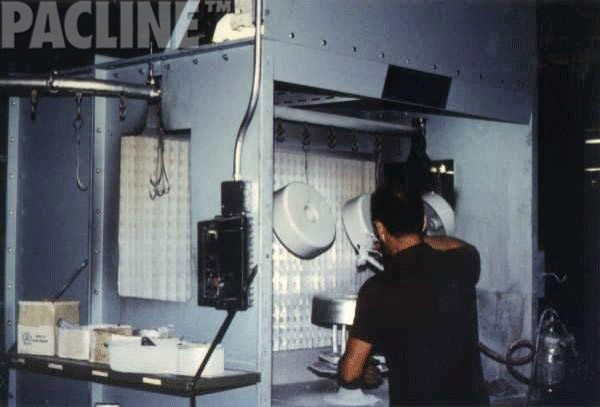

Wet spray painting of small parts using The PAC-LINE™ overhead conveyor system.

Powder finishing of chairs and stools using the PAC-LINE™ conveyor. Conveyor is ceiling supported.

Plastics finishing of auto parts using a power and free overhead conveyor.

Plastics finishing for automotive parts with robotic load and unload, S-310 power and free overhead conveyor.

Locker storage components get powder coating treatment while on an overhead conveyor system.

The PACLINE overhead conveyor is perfect for this powder coating application on storage locker components.

Powder coating of storage locker components on The PAC-LINE™ overhead conveyor system.

PACLINE's enclosed track overhead conveyor carries storage locker parts through powder coating finishing line.

Powder coating of storage locker components on rotating carriers, the PAC-LINE™ enclosed track overhead conveyor.

Pre-heating of seat belt components prior to liquidized bed coating, using the PAC-LINE™ overhead conveyor.

The PAC-LINE™ overhead conveyor system dip coating through liquidized bed for seat belt components.

Unloading of bathtubs from S-310 power and free overhead conveyor system.

Timed curing accumulation on power and free conveyor system for large bathtubs.

Powder coating of safe components using long load bars and bias banking for storage, S-310 Power and Free conveyor.

Large bathtubs finishing system using S-310 Power and Free enclosed track conveyor.

Fiberglass reinforcement on large bathtubs using S-310 Power and Free overhead conveyor.

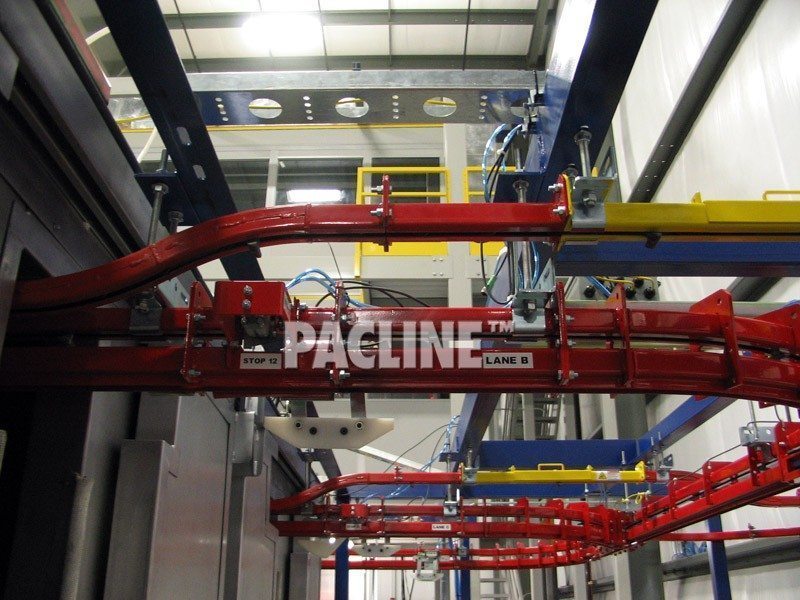

Power and Free overhead conveyor for spray paint finishing of pneumatic and hydraulic cylinders.

The PAC-LINE™ overhead conveyor with sheet metal guarding for small parts and to catch any paint drippings.

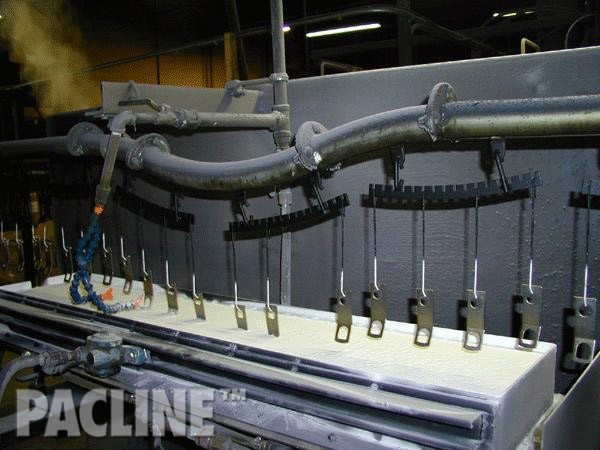

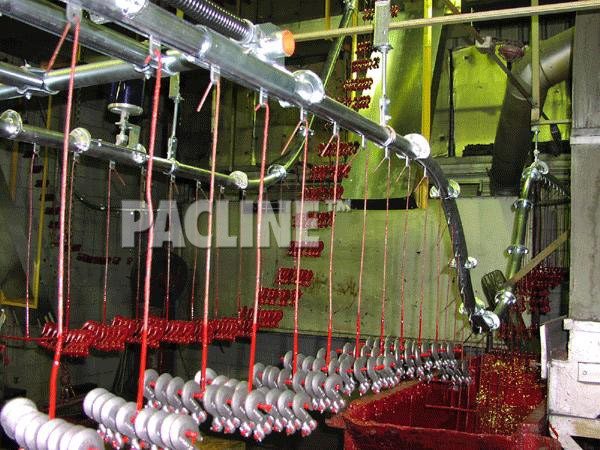

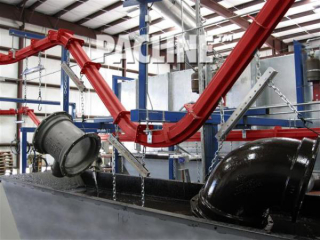

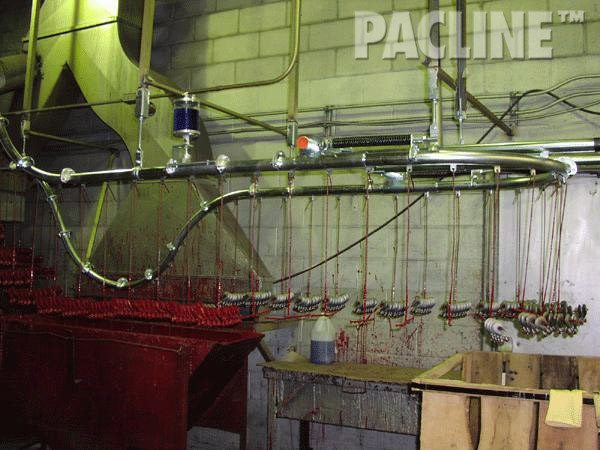

Dip paint finishing of lifting hooks in confined area using The PAC-LINE™ enclosed track overhead conveyor.

The PACLINE enclosed track conveyor. Dip paint finishing of lifting hooks in confined area with steep elevation.

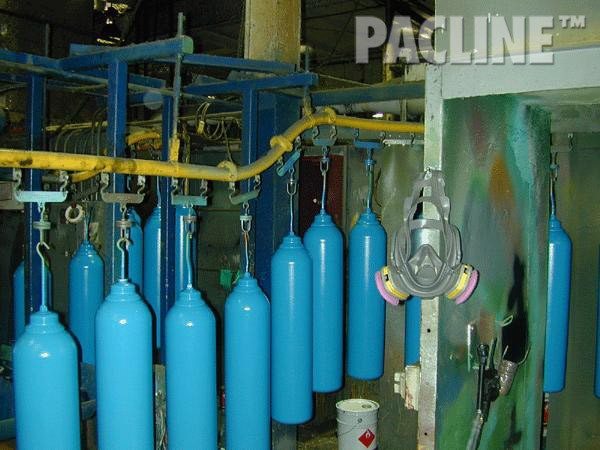

The PAC-LINE™ overhead conveyor for paint finishing of heavy gas bottles on rotating carriers.

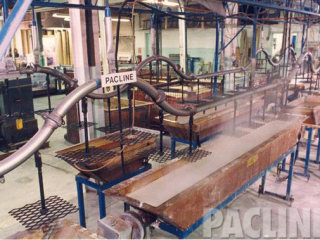

Parts cleaning dip line with tight radius elevation changes to minimize both dip tank size and floor space.

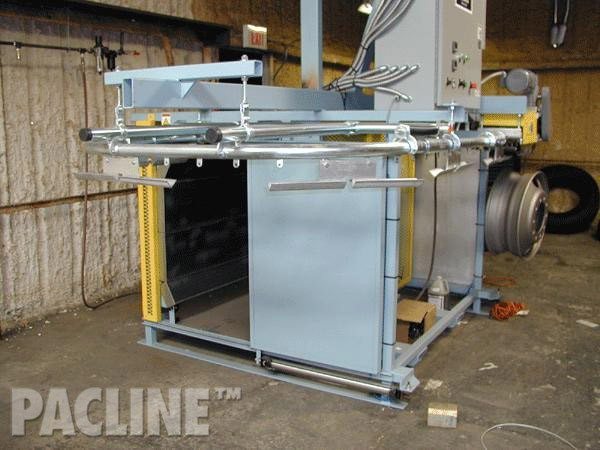

A compact conveyor for the painting of truck rims.

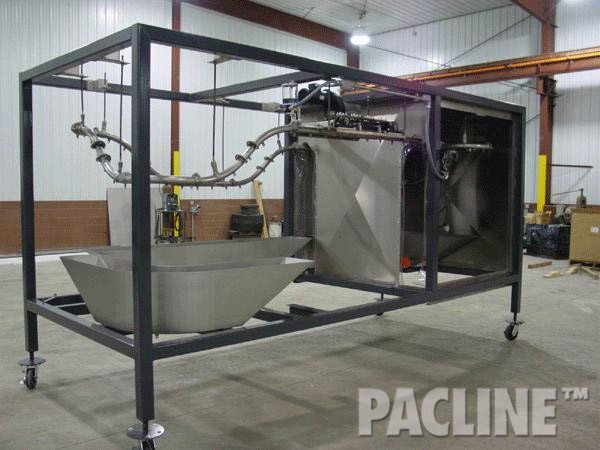

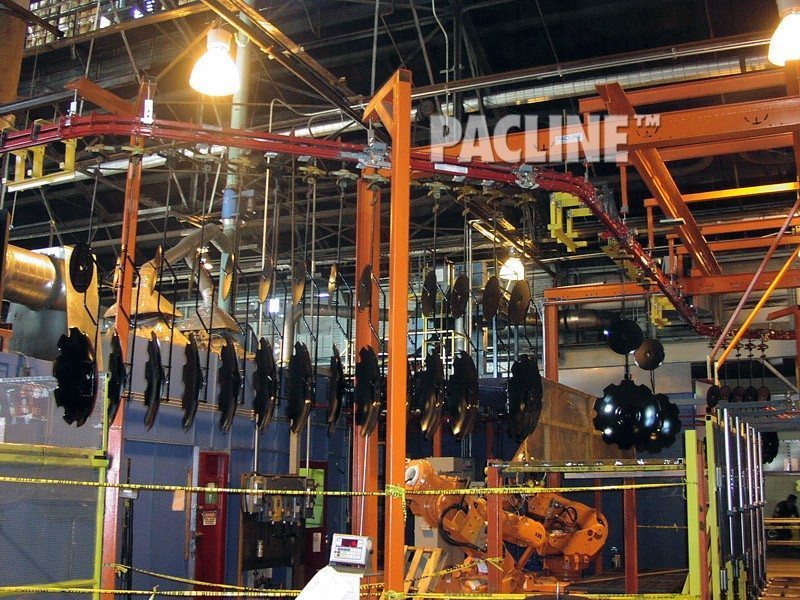

Overhead conveyor dip finishing line on rolling structure with tight radius curves to minimize size of unit.

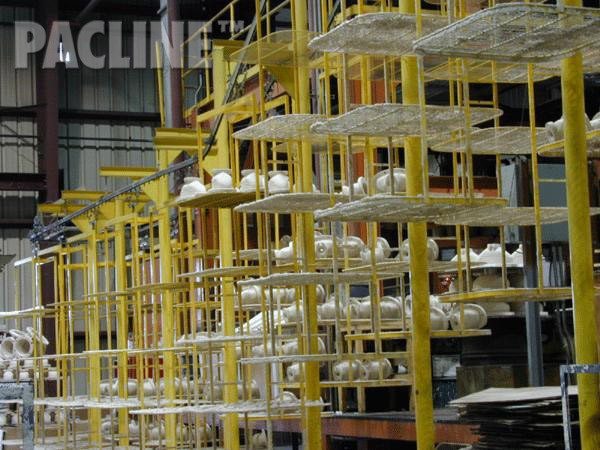

Finishing of pipe fittings on multi-tiered carrier using The PAC-LINE™ enclosed track conveyor.

The PAC-LINE™ conveyor system for plastics finishing of automotive consoles. Floor and equipment supported conveyor.

An automotive finishing line uses a PAC-MAX enclosed track conveyor to transport light bezels into a spray booth.

This enclosed track automotive finishing line is used to convey parts through the paint spraying and curing processes.

This heavy duty overhead conveyor moves products with various sizes and weight through painting and curing stages.

A PAC-MAX conveyor with a slot-side configuration, conveys product through the stages of a powder coating finishing

PAC-MAX conveyor can handle sharp inclines to carry these heavy pipe fittings through paint dip line.

Powder coating of BBQ parts with multiple position load bars on 3 inch I-beam overhead conveyor.

I-beam conveyor with indexing hooks used in the paint finishing of heavy truck suspension components.

A 4 inch I-beam overhead conveyor used in wet spraying of heavy truck suspension components.

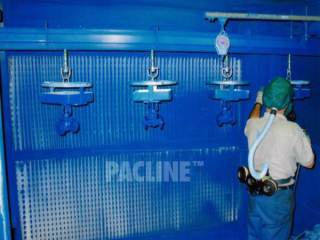

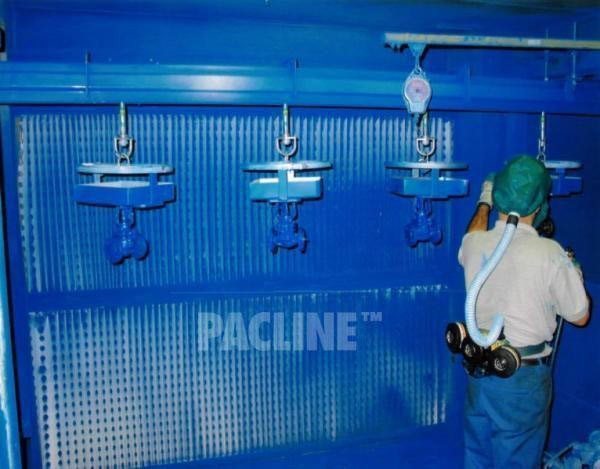

Hydraulic valves are moved through hand spray paint process using a heavy duty PAC-MAX conveyor.

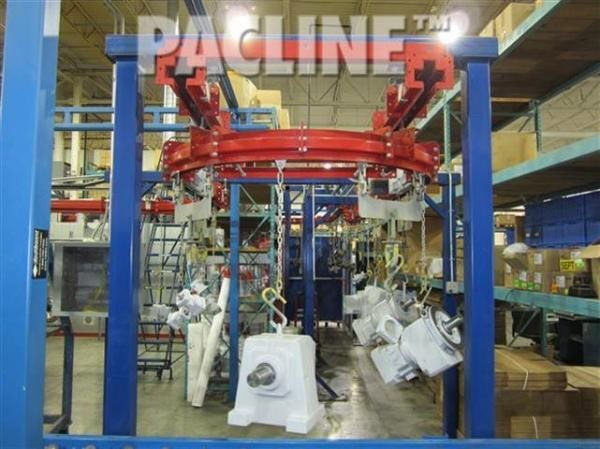

Overhead conveyor PAC-MAX carries industrial valves through paint line process.

Heavy duty PAC-MAX conveyor system is inverted to carry auto parts through high quality paint finishing lines.

Sideways oriented, enclosed track conveyor for finishing automotive rims on sprocket rotatable spindles.

Inverted robotic spraying of plastic automotive components on highly stable, inverted S-60 conveyor.

Spray painting of large gas cylinders on heavy duty sprocket rotators, 3 inch I-beam overhead conveyor.

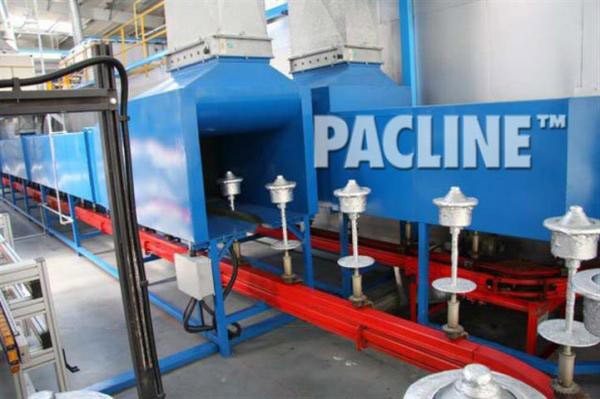

S-60 high capacity conveyor, inverted spindle type finishing conveyor for light bezels.

Sideways enclosed track conveyor for finishing automotive rims on rotatable spindles, S-60 heavy duty conveyor.

This PAC-MAX overhead monorail conveyor is set up to move carriers for large parts through a wet painting process.

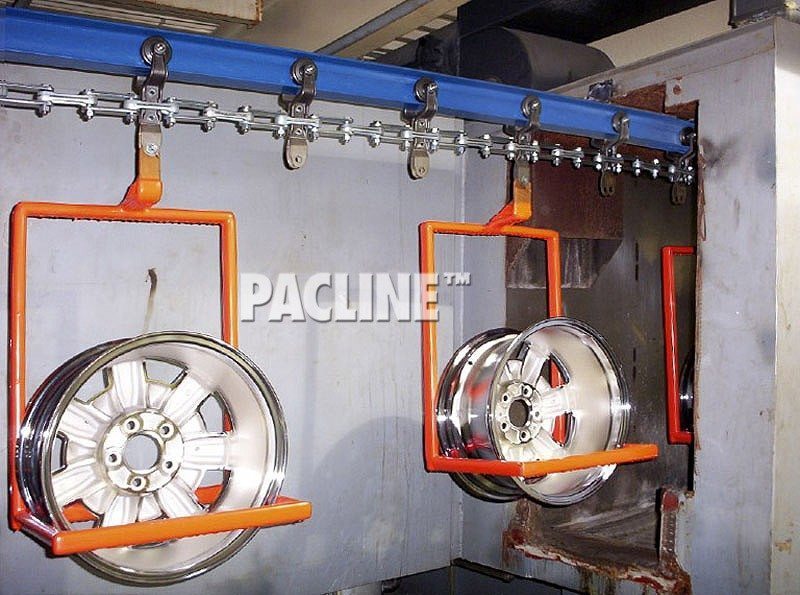

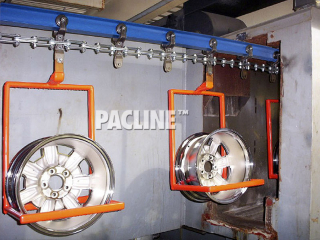

Pacline I-beam conveyor used to transport wheel rims through wash process before electroplating.

PACLINE power and free conveyor system incorporates quality assurance feature in powder coating paint line.

Powder coating of steel safe components using long load bars and bias banking for storage.

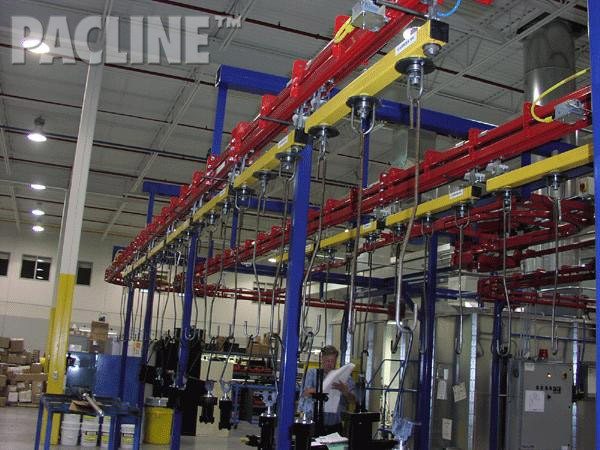

The maze of overhead conveyor demonstrates a highly efficient use of Pacline straight track and curves.

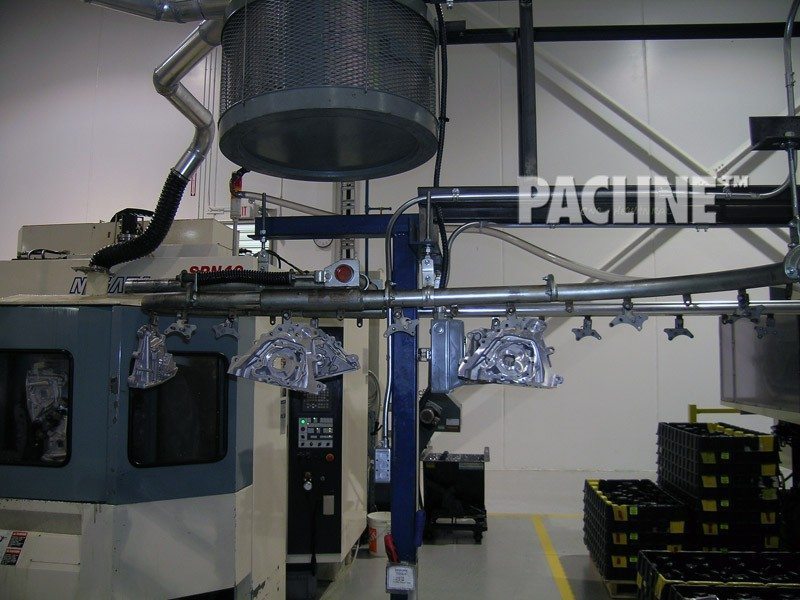

Enclosed track overhead conveyor designed to transfer machined auto parts through wash system.

I beam monorail conveyor with custom carriers to transport wheel rims though chemical wash process.

Enclosed track overhead conveyor transfers machined auto parts through wash and over dry off.

Custom trolleys designed for transferring steel panels through chemical wash on I beam conveyor system.

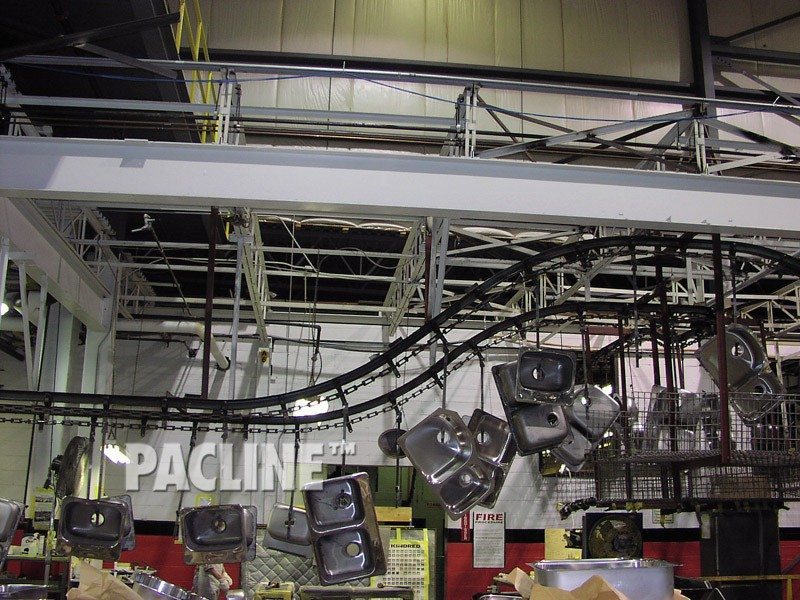

Manufacturer uses I beam conveyor to transfer stainless steel sinks through cleaning system.

Overhead I beam conveyor has tight curves designed to handle parts through dip line finishing system.

Power and free conveyor transfers heavy metal parts through dip paint line, annealing oven and shot blast.

Overhead conveyor system handles commercial door parts through electroplating process.

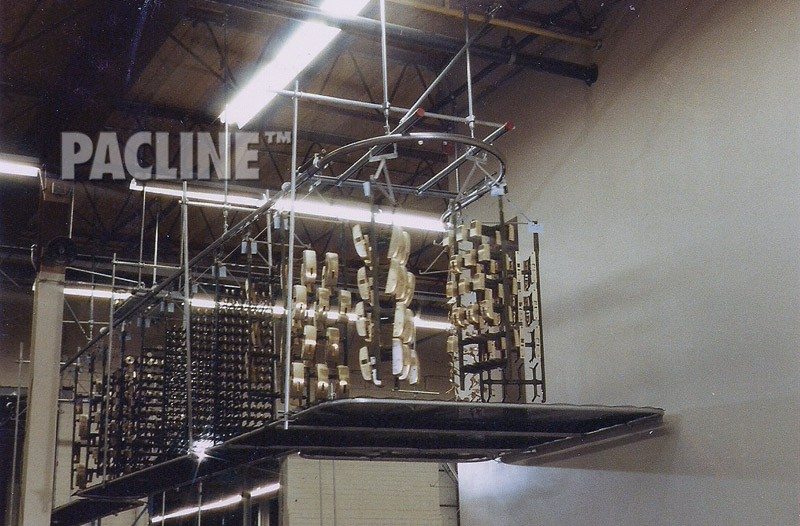

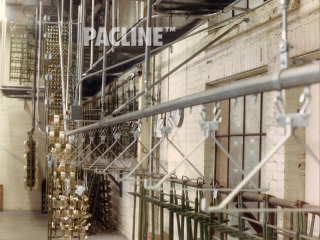

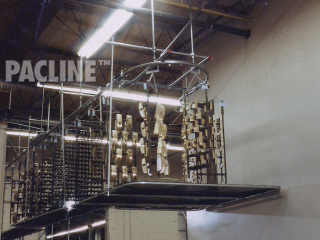

Overhead conveyor carries large racks of metal items through the electroplating process.

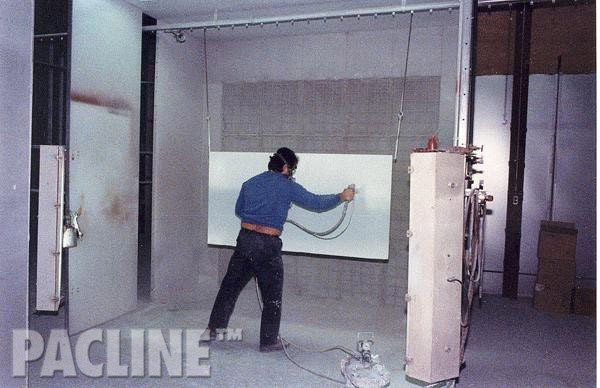

Compact overhead conveyor moves Masonite doors through wet spray paint booth and drying ovens.

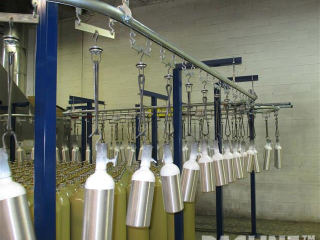

Overhead conveyor system for automating wet spray painting of propane tanks.

Power and free conveyor system for handling parts through multiple curing ovens in wet spray finishing operation.

Automated spray paint line uses overhead conveyor to handle tall wooden doors.

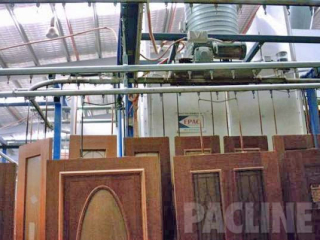

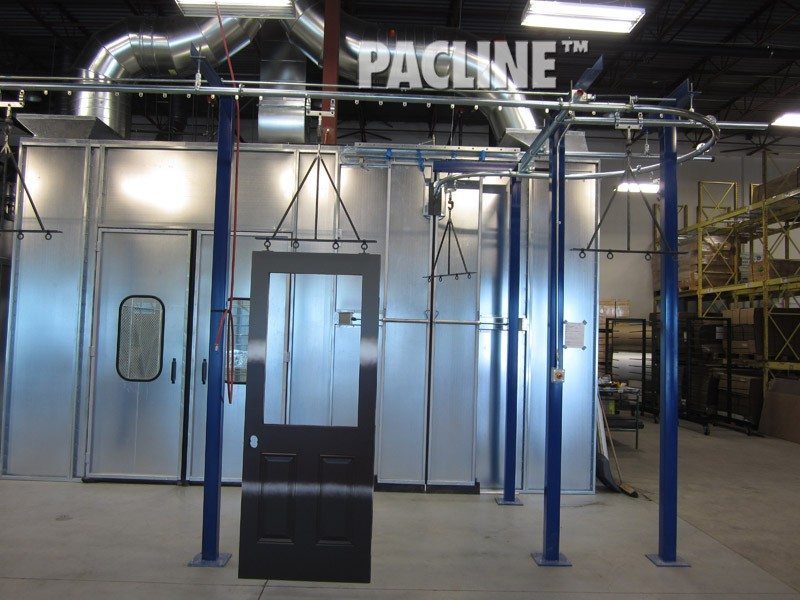

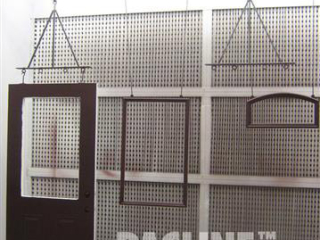

Wooden doors transferred through paint finishing line on enclosed track overhead conveyor.

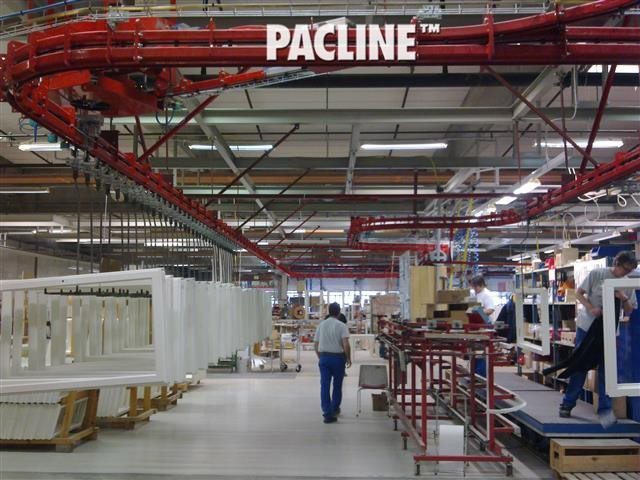

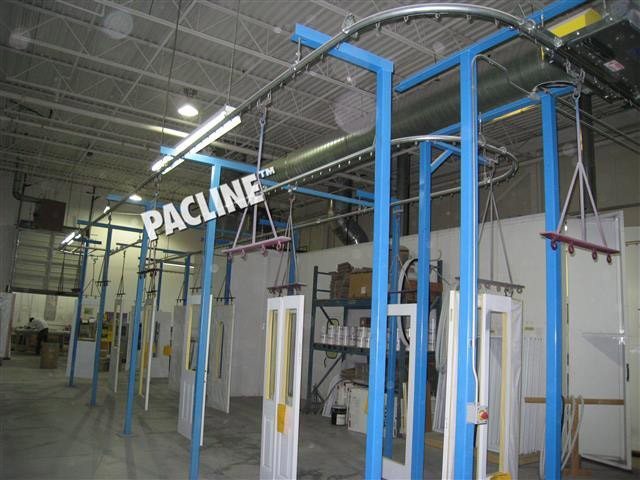

Conveyor used to transfer wooden doors and windows through, paint, stain and curing processes.

Single line overhead conveyor transfers wooden doors and windows through various stages of paint finishing.

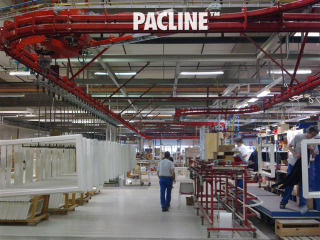

Paint finishing line for wooden doors and window frames uses power and free conveyor system.
